Full package apk
Instructions for updates

1 – Uninstall previous version

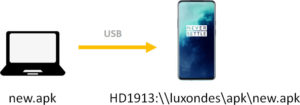

2 – Copy the new file (.apk) to the \\\\ luxondes \\ apk folder on the smartphone





3 – Use File Manager to start the installation









Viewer. APK - V3.3

June 2024 version

mot de passe / password : luxondes

Console. APK - V2.2e

June 2024 version



Scanphone. APK - V3.3

April 2024 version

New features

Release 3.3

  • Autofocus ON/OFF
  • With AF ON: Best photo quality
  • With AF OFF: Better tracking and better fixed grid

Release 3.0

  • Configuration of 2D and 3D grids
  • Improvement of the interface to pose a grid.
  • Added Real/Img (VNA) compatibility

Release 2.5

  • Wired connection with external module
  • Wifi activation bug fix

Release 2.31

  • Activation of the frequency option
  • Improvement of the curve display

Release 2.0

  • Better grid stability
  • Grid positioning parallel to the ground
  • Grid height setting
  • Automatic opening of the viewer after the measurement
  • Direct viewing in the viewer
  • Direct comparison of two maps
  • Save & load settings (with text)





Tektronix. Spectrum Analyzer (RSA306B / RSA500) Pyton prog, <-> PC

January 2021 version

mot de passe / password : luxondes



RWD-64 / USB

December 2023 version



ARCHE-60

November 2024 version



With the QRCode function of the viewer, download mapping examples

  • 2D/3D
  • mono sensor or frequency

Scanner le QRCode correspondant aux exemples ci-dessous

Time Domain Measurement

  • Format Data : .LXD
  • Measurement system : RTA4004 R&S Oscilloscope & PicoSec generator
  • Sensor : xx
  • Temporel : nano-sec
  • Information : Time-Domain



Magnet Vector field

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : G11
  • Magnetic field : X & Y / Field orientation
  • Spectrum :



Amplitude Phase

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : Specific antenna
  • Frequency : 19 GHz
  • Spectrum : ZPH R&S



Frequency mapping

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : Loop antenna
  • Frequency : FM band
  • Spectrum : FPC1000 R&S



Frequency mapping

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : Loop antenna
  • Frequency : 8 – 10 MHz
  • Spectrum : FPC1000 R&S



Low frequency radiation comparison

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : G02
  • Frequency : < 400 MHz
  • Information : Direct comparison



Comparison with and without shielding

  • Format Data : .LXD
  • Measurement system : Scanphone
  • Sensor : G02
  • Frequency : < 400 MHz
  • Information : Direct comparison



Wave simulation

  • Format Data : .LXD
  • Measurement system : simulation software
  • Sensor : xx
  • Temporel : µsec
  • Information : Matlab



Measure and Simulation WiFi antenna

  • Format Data : .XML .FFS
  • Measurement system : Gyroscanfield
  • Sensor : S26
  • Frequency : 2.4 GHz
  • Simulation Software : CST



Measuring a iphone at 900 MHz

  • Format Data : .XML
  • Measurement system : Gyroscanfield
  • Sensor : S26
  • Frequency : 900 MHz
  • Object format : .obj



Kinect kangoo photo

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Spectrum analyseur
  • Frequency : 2 GHz
  • Object format : .jpg



Mapping planar inside a vehicle with kinect

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Spectrum analyseur
  • Frequency : 2 GHz
  • Object format : .obj



Mapping planar outside of a train

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Loop antenna
  • Frequency : < 1MHz
  • Information : Select HD and Extend = 0 and Reload Data



Mapping planar outside of a train (3D obj)

  • Format Data : .XML
  • Measurement system : Kinect
  • Sensor : Loop antenna
  • Frequency : < 1MHz
  • Information : Select HD and Extend = 0 and Reload Data



Map the magnetic field of a magnet

  • Format Data : .XML
  • Number of measurement point : 200 000
  • Measurement system : Swing Arm Scanner
  • Sensor : Hall Effect sensor



Tag RFID with Swing arm scanner

  • Format Data : .XML
  • Number of measurement point : 200 000
  • Frequency : 16 MHz
  • Measurement system : Swing Arm Scanner
  • Sensor : S3



Reader NFC 13.56 MHz

  • Format Data : .XML
  • Number of measurement point : 400
  • Measurement system : Swing Arm Scanner
  • Frequency : 13.56 MHz
  • Object format : .obj
  • Viewer : java / android



µP with and without ground plane

  • Format Data : .XML .XML
  • Number of measurement point : 1400
  • Measurement system : Swing Arm Scanner
  • Sensor : Antenna Card C16
  • Frequency : 16 MHz
  • Object format : .obj
  • Viewer : java / android



EM radiation from a screen

  • Format Data : .XML .XML
  • Number of measurement point : 950
  • Measurement system : Swing Arm Scanner
  • Sensor : Spectrum Analyser
  • Frequency : 40.2 MHz
  • Object format : .obj
  • Viewer : java / android



EM radiation a screen (bottom)

  • Format Data : .XML .XML
  • Number of measurement point : 950
  • Measurement system : Swing Arm Scanner
  • Sensor : Spectrum Analyser
  • Frequency : 40.2 MHz
  • Object format : .obj
  • Viewer : java / android



Switch-mode power supply with cover

  • Format Data : .XML
  • Number of measurement point : 200 000
  • Measurement system : Swing Arm Scanner
  • Sensor : S3
  • Frequency : 16 MHz
  • Object format : .obj
  • Viewer : java / android



Dipole antenna

  • Format Data : .OBJ .FFS
  • Object : Double ridge antenna .obj
  • Simulation software : CST
  • Frequency : 2 GHz
  • Viewer : java / android



Horn antenna simulation

  • Format Data : .OBJ .FFS
  • Object : Double ridge antenna .obj
  • Simulation software : CST
  • Frequency : 2 GHz
  • Viewer : java / android
